Frozen Bake™ Technology

• Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.

Adjustable Self-Cleaning Technology

• Clean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.

5.0 cu. ft. Capacity

• Cook large meals with 5.0 cu. ft. capacity.

Large Oven Window

• Keep an eye on your meal through the large oven window.

Hidden Bake Element

• Get easier oven cleaning with a hidden bake element.

Dishwasher-Safe Knobs

• Remove the dishwasher-safe knobs for easier cleaning.

Upswept SpillGuard™ Cooktop

• Clean up faster with a cooktop that has raised edges to help contain spills.

Sabbath Mode

• Enable this mode to set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off. When it's turned on, displays, tones and all other cooking and cleaning cycles are disabled.

Star-K Certified

• #1 selling appliance brand in the U.S.A.

#1 Selling Appliance Brand in the U.S.A.

• #1 selling appliance brand in the U.S.A.

Fingerprint-Resistant

• Hide fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless and Stainless Steel colors.

Fan Convection Cooking

• Bake on any rack with fan convection cooking. It fills the entire oven with heat, so no matter which rack you use, you still get great results.

SpeedHeat™ Burner

• Get dinner to the table fast with this 15,000 BTU burner that generates the high heat needed to sear and boil quickly.

Center Oval Burner

• Easily fit large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.

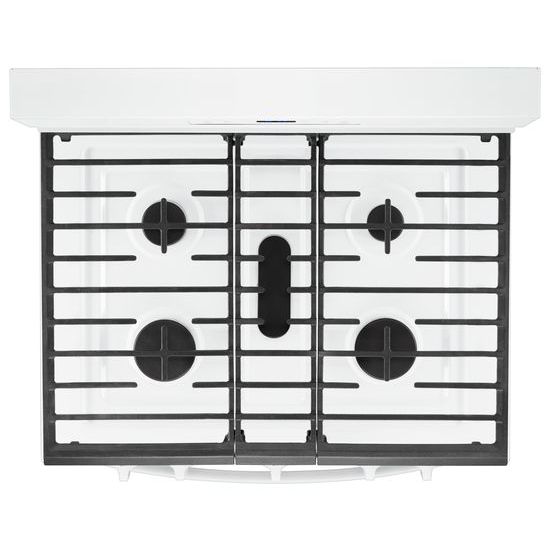

Cast-Iron Grates

• Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.

Keep Warm Setting

• Keep dishes ready to serve while you work on the rest of the meal. This setting delivers low heat to the oven to keep prepared dishes from getting cold.

Temperature Sensor

• Get evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.

Closed Door Broiling

• Maintain the optimal cooking temperature for food while still keeping the kitchen comfortable and cool using this broiling temperature management system that helps prevent overheating.

Control Lock Mode

• Disable the control panel to avoid unintended use.

ADA Compliant
ADA Compliant	No

Amps
Amps	15

Attributes
Number of Burners	Five
Number of Ovens	One
Special Burner	Griddle
Style	Freestanding
Type of Burners	Sealed Burner
Type Of Cleaning	Self Clean
Width	30 inch

Auto Re-ignition
Auto Re-ignition	Yes

Automatic Shut-Off
Automatic Shut-Off	Yes

Bake Element Power
Bake Element Power	16,500 BTU

Broiler Element Power
Broiler Element Power	10,000 BTU

Broiler Location
Broiler Location	Top of Oven

Center Rear Element-Burner Power
Center Rear Element-Burner Power	8000 BTU

Center Rear Element-Burner Type
Center Rear Element-Burner Type	Sealed Burner

Colors
Default	White

Convection Element Type
Convection Element Type	Fan

Convection Functions
Convection Functions	Bake

Cooktop Control Knob Color
Cooktop Control Knob Color	White

Cooktop Control Knob Type
Cooktop Control Knob Type	Plastic

Cooktop Control Location
Cooktop Control Location	Front

Cooktop Control Type
Cooktop Control Type	Knobs

Cooktop Element Style
Cooktop Element Style	Sealed Burner

Cooktop Surface Color
Cooktop Surface Color	White

Cooktop Surface Material
Cooktop Surface Material	Porcelain Coated Steel

CUL
CUL	Yes

default
Brand	Whirlpool
Category	Range
Color	White
Group	Appliances
Sub Category	Gas

Dimensions
Capacity (Cu Ft)	5.00 inch
Carton Depth	29 inch
Carton Height	48 3/4 inch
Carton Width	32 inch
Cutout Depth (in)	24 inch
Cutout Height (in)	36 inch
Cutout Width (in)	30 inch
Depth	27 3/4 inch
Depth Closed Excluding Handles	25 5/16 inch
Depth Closed Including Handles	27 3/4 inch
Depth With Door Open 90 Degree	46 5/8 inch
Gross Weight	196 inch
Height	47 7/8 inch
Maximum Height	47 7/8 inch
Minimum Height	46 7/8 inch
Net Weight	181.0 inch
Width	29 7/8 inch

Dimensions|Capacity(FT3,cubic feet)
Dimensions|Capacity(FT3,cubic feet)	5.00

Dimensions|Cutout Depth(IN,inches)
Dimensions|Cutout Depth(IN,inches)	24

Dimensions|Cutout Height(IN,inches)
Dimensions|Cutout Height(IN,inches)	36

Dimensions|Cutout Width(IN,inches)
Dimensions|Cutout Width(IN,inches)	30

Display Color
Display Color	Blue

Display Type
Display Type	LED

Door Removable
Door Removable	Yes

Door Type
Door Type	Glass Window

Drawer Type
Drawer Type	Storage Drawer

Fuel Type
Fuel Type	Gas

General
Automatic Convection Conversion Temperature Adjust	Automatic Convection Conversion Temperature Adjust : No

Grate Details
Grate Details	Cast Iron Grates,Continuous,Dishwasher Safe,Satin Finish

Griddle
Griddle	NA

Handle Color
Handle Color	White

Handle Material
Handle Material	Metal

Handle Type
Handle Type	Reach Through Handle

Heating Element On Indicator Light
Heating Element On Indicator Light	No

Hidden Bake
Hidden Bake	Yes

Hot Surface Indicator Light
Hot Surface Indicator Light	No

Ignition Type
Ignition Type	Direct Spark Ignition

Interior Color
Interior Color	Dark Grey

Interior Depth (in.)
Interior Depth (in.)	18 1/2

Interior Height (in.)
Interior Height (in.)	18 7/8

Interior Width (in.)
Interior Width (in.)	24 1/2

Left Front Element-Burner Power
Left Front Element-Burner Power	15,000 BTU

Left Front Element-Burner Type
Left Front Element-Burner Type	Power™ Burner

Left Rear Element-Burner Power
Left Rear Element-Burner Power	9500 BTU

Left Rear Element-Burner Type
Left Rear Element-Burner Type	Multi Purpose

Light Type
Light Type	Incandescent

LP Convertible
LP Convertible	Yes

Natural Gas Convertible
Natural Gas Convertible	Yes

Number of Cooking Element-Burners
Number of Cooking Element-Burners	5

Number of Grates
Number of Grates	3

Number of Oven Lights
Number of Oven Lights	1

Number of Oven Racks
Number of Oven Racks	2

Number of Rack Guides
Number of Rack Guides	5

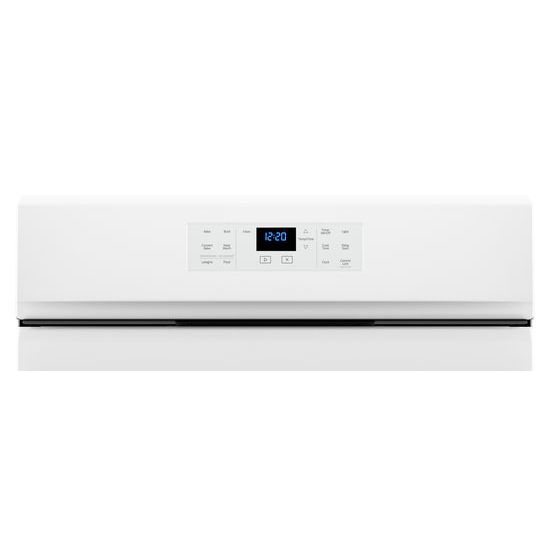

Oven Control Location
Oven Control Location	Backguard

Oven Control Type
Oven Control Type	Electronic Touch

Oven Cooking System
Oven Cooking System	Convection

Oven Light Switch Location
Oven Light Switch Location	Oven Control

Oven Rack Type
Oven Rack Type	Standard

Oven Self-Cleaning
Oven Self-Cleaning	Adjustable Self Cleaning

Oven Window Size
Oven Window Size	Large

Power Cord Included
Power Cord Included	Yes

Power On Indicator Light
Power On Indicator Light	Yes

Power Outage Compatible
Power Outage Compatible	Yes

Prop 65
Prop 65	Standard

Range Type
Range Type	Freestanding

Right Front Element-Burner Power
Right Front Element-Burner Power	15,000 BTU

Right Front Element-Burner Type
Right Front Element-Burner Type	Power™ Burner

Right Rear Element-Burner Power
Right Rear Element-Burner Power	5000 BTU

Right Rear Element-Burner Type
Right Rear Element-Burner Type	Simmer

Selections
Selections	Audible Signal,Automatic Door Latch,Bake,Broil,Cancel/Off,Clock,Control Lock,Convect Modes,Cook and Hold,Cook Time Indicator,Delay Start,Frozen Bake,Keep Warm Setting,Language Conversion,Sabbath Mode,Start Time,Stop Time,Timer

Size (in.)
Size (in.)	30

Star K Certification - Kosher Consumer Friendly
Star K Certification - Kosher Consumer Friendly	Yes

UL
UL	UL

Volts
Volts	120
