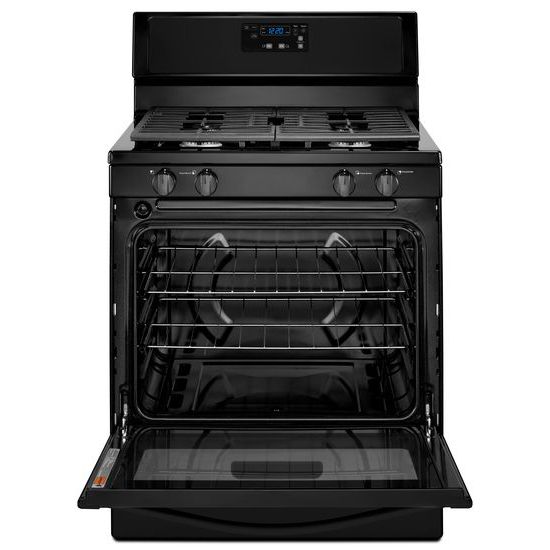

5.1 cu. ft. Freestanding Gas Range with Under-Oven Broiler
-2017_2C_Blarge_jpeg_th_th-2018-05-10-20-17-27.jpg)
- Model:WFG320M0BB
- Color:Black
-
Description:
Enjoy the flexibility and efficiency you need to prepare holiday meals and everything in between with this 5.1 cu. ft. capacity freestanding gas range. Toasting a large batch of garlic bread or melting cheese on burgers for the whole family is easy with the full-width under-oven broiler, which provides enough space to broil an entire rack of food. Multiple Power™ burners with up to 15,000 BTUs are perfect for high heat tasks like searing and frying, while continuous, satin-finish cast-iron grates let you slide heavy pots and pans to the optimal cooking location. The upswept, porcelain SpillGuard™ cooktop contains spills for easy cleanup. Plus, you can monitor cooking progress without opening the door and disturbing the oven temperature with the large oven window.SpeedHeat™ Burners : Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.Oven Light : Provides the illumination you need to see inside your oven whether the door is opened or closed. The light is controlled with an on/off switch.Full-Width Cast-Iron Grates : Cast-iron grates cover nearly the whole cooktop surface, giving you the flexibility to easily slide heavy pots and pans to optimal cooking locations. The grates are dishwasher-safe, and their satin finish resists wear and tear.Large Oven Window : The large window allows for a clear view of the oven interior. Monitor cooking progress without opening the door, keeping oven temperatures steady and undisturbed.Under-Oven Broiler : Perfectly toast a pan of garlic bread and melt cheese on top of casseroles with the under-oven broiler. It's large enough to broil an entire rack of your favorite foods. The full-width, drop-down door design spans the range from side to side, creating enough space for all your broiling needs.5,000 BTU AccuSimmer® burner : The 5,000-BTU AccuSimmer® burner allows for precise temperature control that is perfect for melting chocolate or simmering sauces. When using the AccuSimmer® burner, power is reduced to deliver better control and lower temperatures.Griddle (optional) : This dishwasher-safe griddle offers you more cooking area and flexibility while keeping the rest of the burners free to cook the rest of your meal. Now you can grill vegetables, fajitas and other favorite foods quickly and easily on the cooktop.Adjustable Oven Racks : Two adjustable oven racks can be moved into different positions to better accommodate almost any size of cookware, so you can get your whole meal done at the same time. Use one of the full-width oven racks in the under-oven broiler to easily broil favorites.Control Lock : Disables the control panel to avoid unintended use or other changes to your cooking settings.Clock & Timer : The clock can be set to display the time on a 12-hour cycle. The oven timer can be set in hours or minutes, for a duration of up to 12 hours and 59 minutes.
Quick Specs:
:
Four
:
Freestanding
:
Manual Clean
:
One
:
Sealed Burner
:
30 inch
SpeedHeat™ Burners
- Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.
- Provides the illumination you need to see inside your oven whether the door is opened or closed. The light is controlled with an on/off switch.
- Cast-iron grates cover nearly the whole cooktop surface, giving you the flexibility to easily slide heavy pots and pans to optimal cooking locations. The grates are dishwasher-safe, and their satin finish resists wear and tear.
- The large window allows for a clear view of the oven interior. Monitor cooking progress without opening the door, keeping oven temperatures steady and undisturbed.
- Perfectly toast a pan of garlic bread and melt cheese on top of casseroles with the under-oven broiler. It's large enough to broil an entire rack of your favorite foods. The full-width, drop-down door design spans the range from side to side, creating enough space for all your broiling needs.
- The 5,000-BTU AccuSimmer® burner allows for precise temperature control that is perfect for melting chocolate or simmering sauces. When using the AccuSimmer® burner, power is reduced to deliver better control and lower temperatures.
- This dishwasher-safe griddle offers you more cooking area and flexibility while keeping the rest of the burners free to cook the rest of your meal. Now you can grill vegetables, fajitas and other favorite foods quickly and easily on the cooktop.
- Two adjustable oven racks can be moved into different positions to better accommodate almost any size of cookware, so you can get your whole meal done at the same time. Use one of the full-width oven racks in the under-oven broiler to easily broil favorites.
- Disables the control panel to avoid unintended use or other changes to your cooking settings.
- The clock can be set to display the time on a 12-hour cycle. The oven timer can be set in hours or minutes, for a duration of up to 12 hours and 59 minutes.
| ADA Compliant | |
| ADA Compliant | No |
| Amps | |
| Amps | 15 |
| Attributes | |
| Number of Burners | Four |
| Number of Ovens | One |
| Style | Freestanding |
| Type of Burners | Sealed Burner |
| Type Of Cleaning | Manual Clean |
| Width | 30 inch |
| Bake Element Power | |
| Bake Element Power | 16,500 BTU |
| Broiler Element Power | |
| Broiler Element Power | 16,500 BTU |
| Broiler Location | |
| Broiler Location | Drawer |
| Colors | |
| Default | Black |
| Convection Element Type | |
| Convection Element Type | None |
| Convection Functions | |
| Convection Functions | No |
| Cooktop Control Location | |
| Cooktop Control Location | Front |
| Cooktop Control Type | |
| Cooktop Control Type | Knobs |
| Cooktop Element Style | |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | |
| Cooktop Surface Material | Porcelain Coated Steel |
| default | |
| Brand | Whirlpool |
| Category | Range |
| Color | Black |
| Group | Appliances |
| Sub Category | Gas |
| Dimensions | |
| Capacity (Cu Ft) | 5.10 inch |
| Carton Depth | 28 inch |
| Carton Height | 48 inch |
| Carton Width | 32 inch |
| Cutout Height (in) | 36 inch |
| Cutout Width (in) | 30 1/8 inch |
| Depth | 27.2 inch |
| Depth Closed Excluding Handles | 25 1/8 inch |
| Depth With Door Open 90 Degree | 45 1/4 inch |
| Gross Weight | 136 inch |
| Height | 46 1/4 inch |
| Net Weight | 0.0 inch |
| Width | 29.88 inch |
| Dimensions|Capacity(FT3,cubic feet) | |
| Dimensions|Capacity(FT3,cubic feet) | 5.10 |
| Dimensions|Cutout Height(IN,inches) | |
| Dimensions|Cutout Height(IN,inches) | 36 |
| Dimensions|Cutout Width(IN,inches) | |
| Dimensions|Cutout Width(IN,inches) | 30 1/8 |
| Display Color | |
| Display Color | Blue |
| Display Type | |
| Display Type | Digital |
| Door Type | |
| Door Type | Metal & Glass |
| Drawer Type | |
| Drawer Type | Broiler Drawer |
| Fuel Type | |
| Fuel Type | Gas |
| General | |
| Automatic Convection Conversion Temperature Adjust | Automatic Convection Conversion Temperature Adjust : No |
| Grate Details | |
| Grate Details | Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish,Recessed |
| Griddle | |
| Griddle | Optional Accessory |
| Handle Color | |
| Handle Color | Black |
| Handle Material | |
| Handle Material | Plastic |
| Heating Element On Indicator Light | |
| Heating Element On Indicator Light | No |
| Hidden Bake | |
| Hidden Bake | Yes |
| Hot Surface Indicator Light | |
| Hot Surface Indicator Light | No |
| Hz | |
| Hz | 60 |
| Ignition Type | |
| Ignition Type | Electronic |
| Interior Color | |
| Interior Color | Grey |
| Interior Depth (in.) | |
| Interior Depth (in.) | 25 |
| Interior Height (in.) | |
| Interior Height (in.) | 18 3/8 |
| Interior Width (in.) | |
| Interior Width (in.) | 19 |
| Knob Color | |
| Knob Color | Color Coordinated |
| Knob Type | |
| Knob Type | Dishwasher-Safe Plastic |
| Left Front Element-Burner Power | |
| Left Front Element-Burner Power | 15,000 BTU |
| Left Front Element-Burner Type | |
| Left Front Element-Burner Type | High Output |
| Left Rear Element-Burner Power | |
| Left Rear Element-Burner Power | 9500 BTU |
| Left Rear Element-Burner Type | |
| Left Rear Element-Burner Type | Single |
| Light Type | |
| Light Type | Incandescent |
| LP Convertible | |
| LP Convertible | Yes - Kit Included |
| Number of Cooking Element-Burners | |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | |
| Number of Grates | 2 |
| Number of Oven Lights | |
| Number of Oven Lights | 1 |
| Number of Oven Racks | |
| Number of Oven Racks | 2 |
| Number of Rack Guides | |
| Number of Rack Guides | 5 |
| Oven Control Location | |
| Oven Control Location | Backguard |
| Oven Control Type | |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | |
| Oven Light Switch Location | Oven Control |
| Oven Rack Type | |
| Oven Rack Type | Standard |
| Oven Self-Cleaning | |
| Oven Self-Cleaning | No |
| Oven Window Size | |
| Oven Window Size | Extra Large |
| Power Cord Included | |
| Power Cord Included | Yes |
| Power On Indicator Light | |
| Power On Indicator Light | Yes |
| Power Outage Compatible | |
| Power Outage Compatible | No |
| Prop 65 | |
| Prop 65 | Standard |
| Range Type | |
| Range Type | Freestanding |
| Right Front Element-Burner Power | |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Power | |
| Right Rear Element-Burner Power | 5000 BTU |
| Right Rear Element-Burner Type | |
| Right Rear Element-Burner Type | Simmer |
| Selections | |
| Selections | Clock,Control Lock,Timer |
| Size (in.) | |
| Size (in.) | 30 |
| UL | |
| UL | UL |
| Volts | |
| Volts | 120 |
