30-Inch 4-Burner Dual Fuel Downdraft Slide-In Range
- Model:KSDG950ESS
- Color:Stainless Steel
-
Description:
This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range allows you to achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.Downdraft : Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.Side Trim Accessory Kit : This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.Even-Heat™ True Convection : Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.Steam Rack : Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.6.4 cu ft Capacity : This electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.4 burners (5k, 9.2k, 15k and 17k) : Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.EasyConvect™ Conversion : Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.Aqualift® : Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.Glass Touch Controls : Offer an intuitive, easy-to-use touch screen experience.SatinGlide® Max Racks : Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Quick Specs:
:
Four
:
One
:
Sealed Burner
:
Self Clean
:
Slide-In
:
30 inch
Downdraft

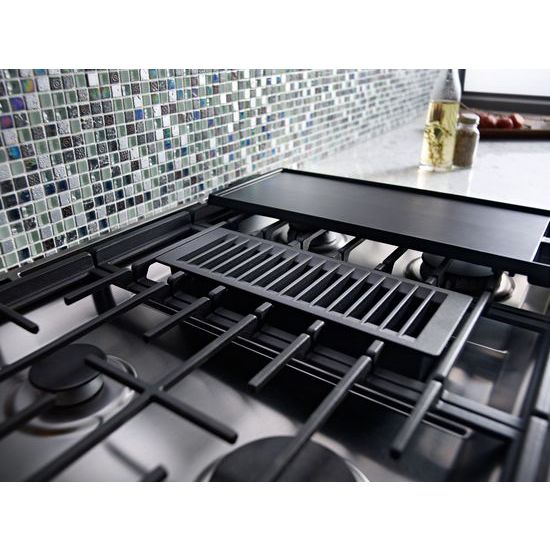

- Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
- This electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
- Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
- Offer an intuitive, easy-to-use touch screen experience.
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
| ADA Compliant | |
| ADA Compliant | ADA Height and Operation Compliant |
| Amps | |
| Amps | 40 |
| Attributes | |
| Number of Burners | Four |
| Number of Ovens | One |
| Style | Slide-In |
| Type of Burners | Sealed Burner |
| Type Of Cleaning | Self Clean |
| Width | 30 inch |
| Auto Re-ignition | |
| Auto Re-ignition | No |
| Automatic Shut-Off | |
| Automatic Shut-Off | Yes |
| Bake Element Power | |
| Bake Element Power | 3600W |
| Broiler Element Power | |
| Broiler Element Power | 4000W |
| Broiler Location | |
| Broiler Location | Top of Oven |
| CFM Motor Class | |
| CFM Motor Class | 350 |
| Colors | |
| Default | Stainless Steel |
| Convection Element Power | |
| Convection Element Power | 3200 |
| Convection Element Type | |
| Convection Element Type | Fan |
| Convection Functions | |
| Convection Functions | Bake,Broil,Roast |
| Cooktop Element Style | |
| Cooktop Element Style | Gas Burner |
| Cooktop Surface Color | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | |
| Cooktop Surface Material | Stainless Steel |
| default | |
| Brand | KitchenAid |
| Category | Range |
| Color | Stainless Steel |
| Group | Appliances |
| Sub Category | Down Draft |
| Dimensions | |
| Capacity (Cu Ft) | 6.40 inch |
| Carton Depth | 30 9/16 inch |
| Carton Height | 43 1/2 inch |
| Carton Width | 31 1/2 inch |
| Depth Closed Including Handles | 28 7/8 inch |
| Depth With Door Open 90 Degree | 48 3/4 inch |
| Gross Weight | 205 inch |
| Height | 36 inch |
| Net Weight | 183.0 inch |
| Width | 29 7/8 inch |
| Dimensions|Capacity(FT3,cubic feet) | |
| Dimensions|Capacity(FT3,cubic feet) | 6.40 |
| Display Color | |
| Display Color | Red/White |
| Display Type | |
| Display Type | Digital |
| Door Removable | |
| Door Removable | Yes |
| Door Type | |
| Door Type | Metal & Glass |
| Drawer Type | |
| Drawer Type | Access Panel |
| Fuel Type | |
| Fuel Type | Dual Fuel |
| General | |
| Automatic Convection Conversion Temperature Adjust | Automatic Convection Conversion Temperature Adjust : Yes |
| Grate Details | |
| Grate Details | Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish |
| Handle Color | |
| Handle Color | Stainless Steel |
| Handle Material | |
| Handle Material | Metal |
| Handle Type | |
| Handle Type | Towel Bar |
| Heating Element On Indicator Light | |
| Heating Element On Indicator Light | No |
| Hidden Bake | |
| Hidden Bake | Yes |
| Hot Surface Indicator Light | |
| Hot Surface Indicator Light | No |
| Interior Color | |
| Interior Color | Grey |
| Interior Depth (in.) | |
| Interior Depth (in.) | 20 3/4 |
| Interior Height (in.) | |
| Interior Height (in.) | 22 1/8 |
| Interior Width (in.) | |
| Interior Width (in.) | 24 1/8 |
| Knob Color | |
| Knob Color | Stainless Steel |
| Knob Type | |
| Knob Type | Metal |
| Left Front Element-Burner Power | |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | |
| Left Rear Element-Burner Type | Burner |
| Light Type | |
| Light Type | Incandescent |
| LP Convertible | |
| LP Convertible | Yes |
| Number of Cooking Element-Burners | |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | |
| Number of Grates | 3 |
| Number of Oven Lights | |
| Number of Oven Lights | 2 |
| Number of Oven Racks | |
| Number of Oven Racks | 3 |
| Number of Rack Guides | |
| Number of Rack Guides | 7 |
| Oven Control Type | |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | |
| Oven Cooking System | Convection |
| Oven Light Switch Location | |
| Oven Light Switch Location | Oven Control |
| Oven Rack Type | |
| Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
| Oven Self-Cleaning | |
| Oven Self-Cleaning | AquaLift® Self Clean |
| Oven Window Size | |
| Oven Window Size | Large |
| Power Cord Included | |
| Power Cord Included | No |
| Power On Indicator Light | |
| Power On Indicator Light | Yes |
| Power Outage Compatible | |
| Power Outage Compatible | No |
| Prop 65 | |
| Prop 65 | Standard |
| Range Type | |
| Range Type | Slide-in |
| Right Front Element-Burner Power | |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | |
| Right Rear Element-Burner Power | 9200 BTU |
| Right Rear Element-Burner Type | |
| Right Rear Element-Burner Type | Burner |
| Selections | |
| Selections | Cancel/Off,Clock,Cook Time Indicator,Delay Start,Keep Warm Setting,Proofing,Steam Bake,Timer |
| Size (in.) | |
| Size (in.) | 30 |
| UL | |
| UL | UL |
| Volts | |
| Volts | 240 |
